GKSL equation

With the states and operators defined by this package, we can define a Lindbladian operator acting on density matrices, in a typical GKSL equation. Let's take, as an example, a system of (N=4) harmonic oscillators described by the Hamiltonian

\[H= \sum_{n=1}^{N} \omega_n\phantomadj a^\dagger_n a_n\phantomadj + \sum_{n=1}^{N-1} \lambda_n\phantomadj (a^\dagger_n a_{n+1}\phantomadj + a^\dagger_{n+1} a_n\phantomadj).\]

We set up the site indices and the coefficients (to some arbitrary values),

julia> N = 4; s = siteinds("vBoson", N; dim=5);

julia> ω = fill(1.0, N);

julia> λ = fill(0.25, N);

and the initial state such that there's one particle in the first site and two in the second one:

julia> ρₜ = MPS(s, ["1", "2", "0", "0"])
4-element MPS:
 ((dim=25|id=644|"Site,n=1,vBoson"), (dim=1|id=769|"Link,l=1"))
 ((dim=1|id=769|"Link,l=1"), (dim=25|id=431|"Site,n=2,vBoson"), (dim=1|id=427|"Link,l=2"))
 ((dim=1|id=427|"Link,l=2"), (dim=25|id=652|"Site,n=3,vBoson"), (dim=1|id=382|"Link,l=3"))
 ((dim=1|id=382|"Link,l=3"), (dim=25|id=551|"Site,n=4,vBoson"))

Unitary time evolution

We will evolve the state using the tMPS algorithm, where we break up the evolution operator \(\exp(-\iu tH)\) into smaller factors using a quite rudimental Suzuki-Trotter approximation

\[\exp(-\iu tH) \approx \exp(-\iu tH_{34}) \exp(-\iu tH_{23}) \exp(-\iu tH_{12})\]

where

\[\begin{gather*} H_{12} \defeq \omega_1\phantomadj \adj{a_1} a_1\phantomadj + \lambda_1 (\adj{a_1} a_2\phantomadj + \adj{a_2} a_1\phantomadj) + \tfrac12 \omega_2\phantomadj \adj{a_2} a_2\phantomadj,\\ H_{23} \defeq \tfrac12 \omega_2\phantomadj \adj{a_2} a_2\phantomadj + \lambda_2 (\adj{a_2} a_3\phantomadj + \adj{a_3} a_2\phantomadj) + \tfrac12 \omega_3\phantomadj \adj{a_3} a_3\phantomadj,\\ H_{34} \defeq \tfrac12 \omega_3\phantomadj \adj{a_3} a_3\phantomadj + \lambda_3 (\adj{a_3} a_4\phantomadj + \adj{a_4} a_3\phantomadj) + \omega_4\phantomadj \adj{a_4} a_4\phantomadj. \end{gather*}\]

This decomposition implies a similar decomposition for the commutators, that is

\[\exp(-\iu t [H, \blank]) \approx \exp(-\iu t [H_{34}, \blank]) \exp(-\iu t [H_{23}, \blank]) \exp(-\iu t [H_{12}, \blank])\]

so we can compose the time-evolution operator for our mixed state as follows:

julia> L₁₂ = (
           ω[1] * gkslcommutator_itensor(s, "N", 1, "Id", 2) +
           λ[1] * (
               gkslcommutator_itensor(s, "Adag", 1, "A", 2) +
               gkslcommutator_itensor(s, "A", 1, "Adag", 2)
           ) +
           0.5ω[2] * gkslcommutator_itensor(s, "Id", 1, "N", 2)
       );

julia> L₂₃ = (
           0.5ω[2] * gkslcommutator_itensor(s, "N", 2, "Id", 3) +
           λ[2] * (
               gkslcommutator_itensor(s, "Adag", 2, "A", 3) +
               gkslcommutator_itensor(s, "A", 2, "Adag", 3)
           ) +
           0.5ω[3] * gkslcommutator_itensor(s, "Id", 2, "N", 3)
       );

julia> L₃₄ = (
           0.5ω[3] * gkslcommutator_itensor(s, "N", 3, "Id", 4) +
           λ[3] * (
               gkslcommutator_itensor(s, "Adag", 3, "A", 4) +
               gkslcommutator_itensor(s, "A", 3, "Adag", 4)
           ) +
           ω[4] * gkslcommutator_itensor(s, "Id", 3, "N", 4)
       );

julia> L = [L₁₂, L₂₃, L₃₄];

Now we evolve the state, and at each time step we record its trace and the expectation value (normalised by the trace) of the number operator on all sites. Let's define first some functions to compute the expectation values.

julia> function expect_vec(x::MPS, name::AbstractString)
           ev = [dot(MPS(siteinds(x), j -> j == n ? name : "Id"), x)
                 for n in 1:length(x)]
           ev ≈ real(ev) || @warn "Expectation values are not real"
           return real(ev)
       end;

julia> function trace(x::MPS)
           t = dot(MPS(siteinds(x), "Id"), x)
           t ≈ real(t) || @warn "Trace is not real"
           return real(t)
       end;

We will store the results in the columns of a matrix: the i-th column will be \(\tr(N^{(i)} \rho\sb{t})\), while the last will be \(\tr\rho\sb{t}\). We use the decomposition

\[\Phi_t \approx \exp(\tfrac{t}{2} L_{12}) \exp(\tfrac{t}{2} L_{23}) \exp(\tfrac{t}{2} L_{34}) \exp(\tfrac{t}{2} L_{34}) \exp(\tfrac{t}{2} L_{23}) \exp(\tfrac{t}{2} L_{12})\]

to approximate the time-evolution operator \(\Phi\sb{t} = \exp(t(L{12} + L{23} + L_{34}))\) for a time increment \(t\).

julia> dt = 0.05; tmax=5;

julia> evol_seq = exp.(0.5dt .* L); append!(evol_seq, reverse(evol_seq));

julia> nsteps = floor(Int, tmax / dt);

julia> expvals = Matrix{Float64}(undef, nsteps+1, N+1);

julia> tr_ρₜ = trace(ρₜ); expvals[1, :] = [expect_vec(ρₜ, "N") ./ tr_ρₜ; tr_ρₜ];

julia> expvals[1, :] ≈ [1, 2, 0, 0, 1]
true

julia> for step in 1:nsteps
           ρₜ = apply(evol_seq, ρₜ)
           tr_ρₜ = trace(ρₜ)
           expvals[step+1, :] .= [expect_vec(ρₜ, "N") ./ tr_ρₜ; tr_ρₜ]
       end

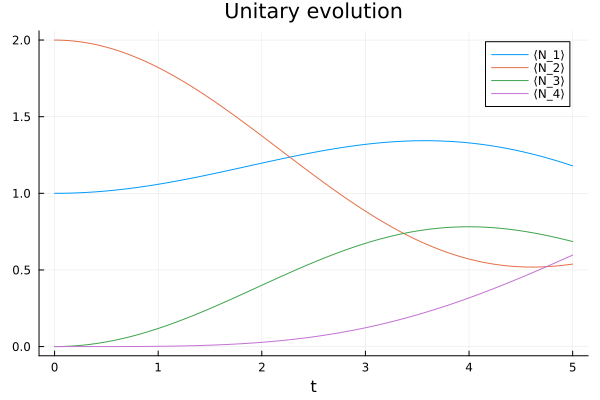

Let's visualise the results using the Plots library:

julia> using Plots

julia> plt = plot(; title="Unitary evolution", xlabel="t");

julia> for n in 1:N
           plot!(plt, 0:dt:tmax, expvals[:, n], label="⟨N_$n⟩")
       end;

Adding a dissipation term

Let's also add a thermalisation term on all sites:

\[\dissipator^{(n)} = \rho \mapsto \gamma (\nu_n+1) ( a_n\phantomadj \rho \adj{a_n} - \tfrac12 \adj{a_n} a_n\phantomadj \rho - \tfrac12 \rho \adj{a_n} a_n\phantomadj ) + \gamma \nu_n ( \adj{a_n} \rho a_n\phantomadj - \tfrac12 a_n\phantomadj \adj{a_n} \rho - \tfrac12 \rho a_n\phantomadj \adj{a_n} )\]

where \(\nu\sb{n} = 1/(\eu^{\omega\sb{n}/T} - 1)\) is the average boson number on site \(n\) at temperature \(T\).

julia> γ = 0.5; T = 2;

julia> avgn(ω, T) = 1 / expm1(ω/T);

julia> function D(n)
            d1 = (avgn(ω[n], T) + 1) * (
               op("A⋅ * ⋅Adag", s, n) -
               0.5 * op("Adag⋅ * A⋅", s, n) -
               0.5 * op("⋅A * ⋅Adag", s, n)
           );
           d2 = avgn(ω[n], T) * (
               op("Adag⋅ * ⋅A", s, n) -
               0.5 * op("A⋅ * Adag⋅", s, n) -
               0.5 * op("⋅Adag * ⋅A", s, n)
           );
           return γ * (d1 + d2);
       end;

Now we reset the state to its initial value, and add the non-unitary terms to the time-evolution operator, spreading them equally among the factors.

julia> L₁₂ = (
           ω[1] * gkslcommutator_itensor(s, "N", 1, "Id", 2) +
           λ[1] * (
               gkslcommutator_itensor(s, "Adag", 1, "A", 2) +
               gkslcommutator_itensor(s, "A", 1, "Adag", 2)
           ) +
           0.5ω[2] * gkslcommutator_itensor(s, "Id", 1, "N", 2) +
           D(1) * op("Id", s, 2) +
           op("Id", s, 1) * 0.5D(2)
       );

julia> L₂₃ = (
           0.5ω[2] * gkslcommutator_itensor(s, "N", 2, "Id", 3) +
           λ[2] * (
               gkslcommutator_itensor(s, "Adag", 2, "A", 3) +
               gkslcommutator_itensor(s, "A", 2, "Adag", 3)
           ) +
           0.5ω[3] * gkslcommutator_itensor(s, "Id", 2, "N", 3) +
           0.5D(2) * op("Id", s, 3) +
           op("Id", s, 2) * 0.5D(3)
       );

julia> L₃₄ = (
           0.5ω[3] * gkslcommutator_itensor(s, "N", 3, "Id", 4) +
           λ[3] * (
               gkslcommutator_itensor(s, "Adag", 3, "A", 4) +
               gkslcommutator_itensor(s, "A", 3, "Adag", 4)
           ) +
           ω[4] * gkslcommutator_itensor(s, "Id", 3, "N", 4) +
           0.5D(3) * op("Id", s, 4) +
           op("Id", s, 3) * 0.5D(4)
       );

julia> L = [L₁₂, L₂₃, L₃₄];

julia> evol_seq = exp.(0.5dt .* L); append!(evol_seq, reverse(evol_seq));

julia> ρₜ = MPS(s, ["1", "2", "0", "0"])
4-element MPS:
 ((dim=25|id=278|"Site,n=1,vBoson"), (dim=1|id=894|"Link,l=1"))
 ((dim=1|id=894|"Link,l=1"), (dim=25|id=287|"Site,n=2,vBoson"), (dim=1|id=537|"Link,l=2"))
 ((dim=1|id=537|"Link,l=2"), (dim=25|id=148|"Site,n=3,vBoson"), (dim=1|id=352|"Link,l=3"))
 ((dim=1|id=352|"Link,l=3"), (dim=25|id=613|"Site,n=4,vBoson"))

Let's start the evolution:

julia> tr_ρₜ = trace(ρₜ); expvals[1, :] = [expect_vec(ρₜ, "N") ./ tr_ρₜ; tr_ρₜ];

julia> for step in 1:nsteps
           ρₜ = apply(evol_seq, ρₜ)
           tr_ρₜ = trace(ρₜ)
           expvals[step+1, :] .= [expect_vec(ρₜ, "N") ./ tr_ρₜ; tr_ρₜ]
       end

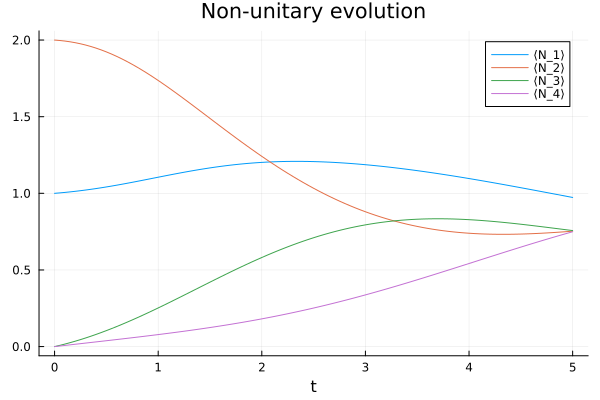

Here's a plot of the results, obtained in the same way as the another one.
